Vertical 500 CMH Energy Recovery Ventilation Heat exchange System Coronavirus Prevention
► ADVANTAGE
Energy conservation
It adopts DC brushless fan, one fan and two wind wheels. It
operates with low energy consumption. It has a large area of
aluminum cold and heat exchanger, and the recovery efficiency is up
to 85%
High purification rate
The unit adopts three-stage filtration to thoroughly filter PM2.5,
the purification efficiency reaches 99.9%, the bacteria are killed
by 10000v electrostatic negative high voltage, the molecular shield
sterilization and antibacterial technology are adopted.
High-quality
All metal components of the unit are made of 1.2-1.5mm thick steel
plate. Most parts are moulded and coated with high-end anti rust
technology. Imported motor, humanized control, large wind wheel,
low speed, high silence and high residual pressure.
Eliminate the internal air entrainment
The inner clapboard of the unit is sealed with sealing cotton, the
screw and riveting link are used to completely eliminate the
internal air entrainment of the unit.
Zero hidden danger
The fan and high pressure parts are designed with closed structure
and built-in safety switch. Even if the door is opened, there is no
danger at all.
Zero ozone
Electrostatic dust collection box adopts composite electrostatic
technology, air does not contact with conductive module directly , so no ozone will be produced.
Extremely comfortable
Professional fan and wind wheel, extremely low speed, low noise,
new negative high voltage electrostatic purification technology,
sealed electrode, no discharge arcing, no ozone, high pressure
release of negative oxygen ions, like forest oxygen bar, improve
human comfort.
Very beautiful
The appearance design is novel and beautiful. The color display
screen and all metal shell show the extraordinary quality of the
product
► Details
| TECHNICAL PARAMETER |
| MODEL NO.: | CSBG500 |
| FRESH AIR VOLUME | 500 CMH |
| EXHAUST AIR VOLUME | 210 CMH |
| HEAT EXCHANGE RATE | 70-85% |
| MICROBIAL PURIFICATION RATE | 99% |
| OZONE QUANTITY | 0 |
| PURIFICATION RATE | PM2.5-99.9% |
| POWER | AC 220V/50HZ |
| RATED POWER | 160W |
| NOISE | 45DB |
| APPLICABLE AREA | 30-140 M2 |
| AIR SUPPLY MODE | TOP AIR SUPPLY |
| WEIGHT | 48 KGS |
| SIZE | 1200*480*370mm |

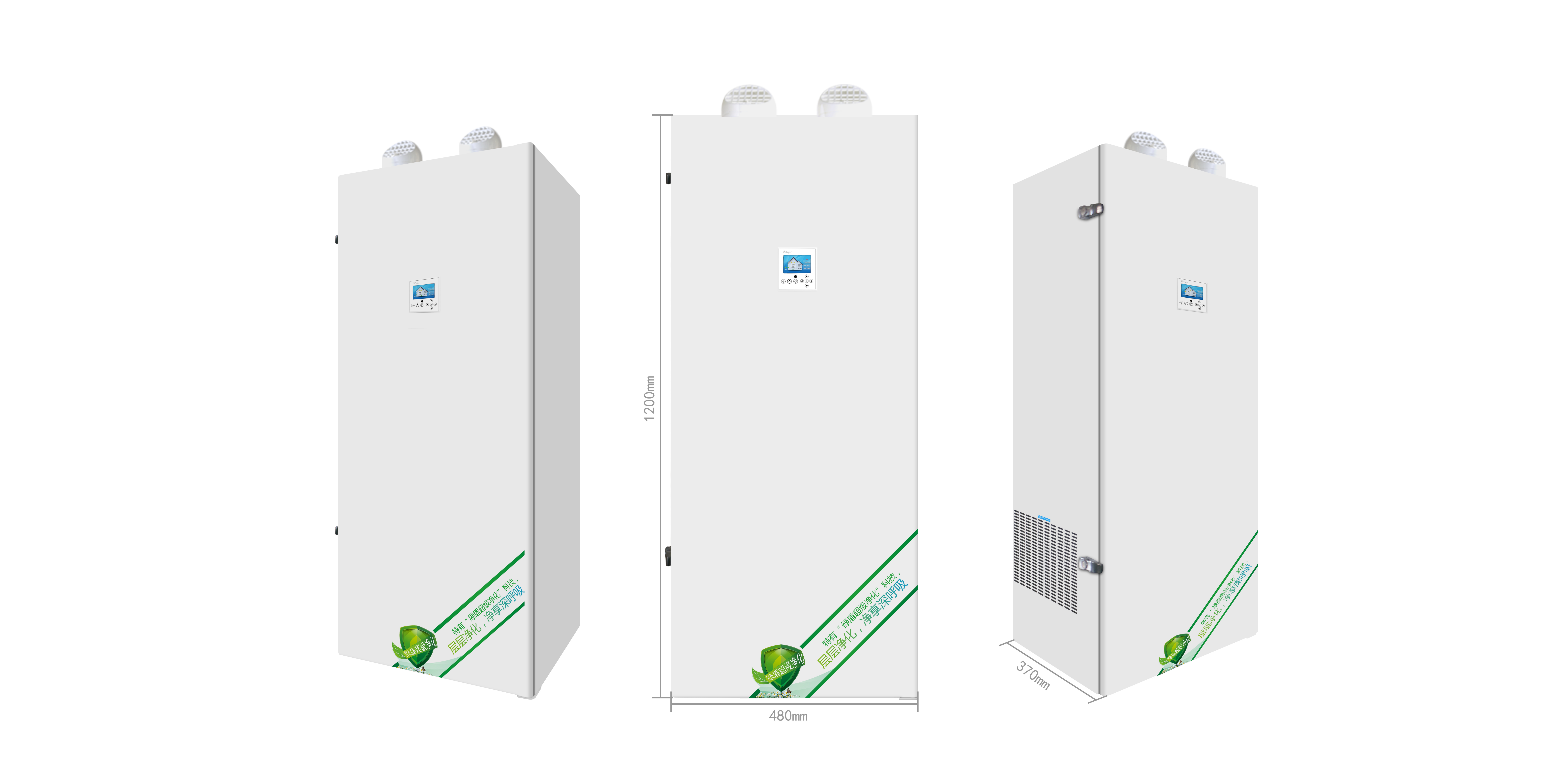

► DIMENSITION
► DETAILED DISPLAY
Touch color display
TFT real color screen, more refreshing color, sensitive touch,
simple operation
Large air output
Soft wind, wide coverage
Remote and mobile wifi control
Go out and control the air quality at home at any time
Elegant lock, safe and secure
Protect the health of you and your family
Eliminating visible and invisible air pollution
Pet hair Urban waste Pollen PM2.5 Second hand Viral Formaldehyde
gas smoke bacteria
Special fan
Big wind wheel Low speed Low noise Long service life
► Fresh air and exhaust air use one brushless DC motor
► The wind wheel and impeller is designed, moulded and processed by
our company.
We can control the quality effectively.
► Wind wheel is 2.5 times larger than other brands.
► It has the characteristics of high efficiency, low noise, large
air volume and stable operation.
special volute big air volume DC brushless special volute
wind wheel motor
