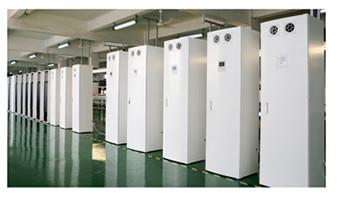

210W HRV/ERV floor Standing type Ductless heat recovery ventilation
system
► INTRODUCTION
CS Residential and Commercial Energy Recovery Ventilators (ERVs)
are the best choice for ventilating your home or workplace. These
units are designed to provide fresh air into the building while
exhausting an equal amount of stale air to the outside. Energy
including moisture is transfered between the airsteams reducing the
loads on the heating and cooling equipment while delivering the air
comfortably and quietly into the space.
► CHARACTERISTIC
Maximum Heat Transfer
Our counter cross flow design guarantees a maximum displacement of
energy throughout the heat recovery core. This allows for the
maximum possible heat transfer.
Best-In-Class Lifetime Warranty
The high-quality construction of this non-moving part ensures a
lifetime of performance and peace of mind, which is backed by our
commitment to you.
Ease of Maintenance
An advanced, service-friendly design features easy-access doors and
smooth cell rails, which allow for the core to be slid out and
washed with minimal effort. It also features reasonable plate
separation to ensure that dirt and debris is efficiently removed
from between the washable plates.
Maximum Airflow Design
The most efficient core in today’s market features the perfect
balance of heat recovery and airflow. This model of efficiency was
designed using computer-generated fluid dynamics to determine the
optimal pattern of the plate surfaces and spacing.
Durability in All Climates
In addition to being a strong conductor of energy, aluminum is much
more durable than conventional materials found in competitive
products. You can have complete confidence in the durability and
performance of the unit – regardless of the climate in which it’s
installed.
Non-Toxic & Environmentally Friendly
The CS core is comprised of aluminum plates. Not only are these
environmentally friendly, but they’re also non-toxic and do not
emit gas like other materials. On its own, the durability and
long-life of these cores would be environmentally beneficial, but
that environmental stewardship is augmented by the fact that the
finished core itself is completely recyclable at the end of its
life cycle – as is all material used during the manufacturing
process.
► TEST RESULT
| Item | Unit | Result |
| Air volume | Fresh air | m3/h | 520 |
| Exhaust air | m3/h | 331 |
| Outside pressure | Fresh air | Pa | 115 |
| Exhaust air | Pa | 11 |
| Input power | W | 180 |
| Noise | dB (A) | 44 |
| PM2.5 Primary pass purification efficiency | % | 99.9 |
| Ozone concentration increase | mg/m3 | 0 |
| Effective ventilation rate | % | 90 |
| Enthalpy exchange efficiency under refrigeration condition | % | 59 |
| Enthalpy exchange efficiency under heating condition | % | 78 |
► DIMENSION
Protect the health of you and your family
Eliminating visible and invisible air pollution
Pet hair Urban waste Pollen PM2.5 Second hand Viral Formaldehyde
gas smoke bacteria
Special fan
Big wind wheel Low speed Low noise Long service life
► Fresh air and exhaust air use one brushless DC motor
► The wind wheel and impeller is designed, moulded and processed by
our company.
We can control the quality effectively.
► Wind wheel is 2.5 times larger than other brands.
► It has the characteristics of high efficiency, low noise, large
air volume and stable operation.
special volute big air volume DC brushless special volute
wind wheel motor
► APPLICAITON
