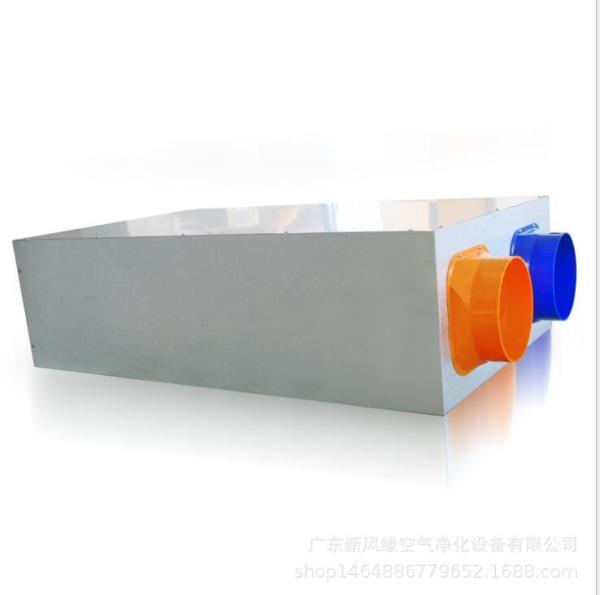

206 CFM PM2.5 purification type silent fresh air home ventilation system

KEY FEATURES:

Suitable for houses up to 350 m²

Up to 90% heat recovery

Extra low energy use

Mechanical summer by-pass

Internal humidity sensor

Digital control

Vertical or horizontal connections

Left or right-hand configuration

► WORKING PRINCIPLE OF HEAT EXCHANGE

► TECHNICAL PARAMETERS

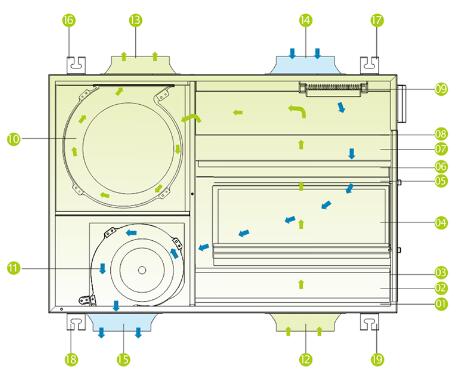

► WORKING PRINCIPLE

1. Pre filtration wire mesh

2. Primary filter

3. Outdoor temperature sensor

4. Heat exchanger

5. Activated carbon, CO₂ sensor

6. Negative oxygen ion

7. High efficiency filter

8. Indoor temperature sensor

9. Power Supply 220V 50HZ

10. Fresh air fan

11. Exhaust fan

12. Outdoor fresh air inlet

13. Indorr fresh air inlet

14. Indoor exhaust inlet

15. Outdoor exhaust inlet

16. Hook

17. Hook

18. Hook

19. Hook

COOPERATION PARTNER

Hong Kong Chuang Sheng Electronics Co.,Ltd. is a high-tech group company engaged in R &D, production, sales and service of fresh air system. The company has mastered many cutting-edge core technologies and patents of indoor environment treatment and purification, has senior R & D team, experienced management, quality control and sales team. The factory covers an area of more than 50000 square meters, with complete automatic production line and mold processing workshop, hardware workshop, injection workshop, painting workshop; with an annual production capacity of 300000 sets.The company passed ISO9001-2000 certification and ISO14001 environmental system certification.
Our products export to America, Canada, Europe, Russia and southeast Asia.
