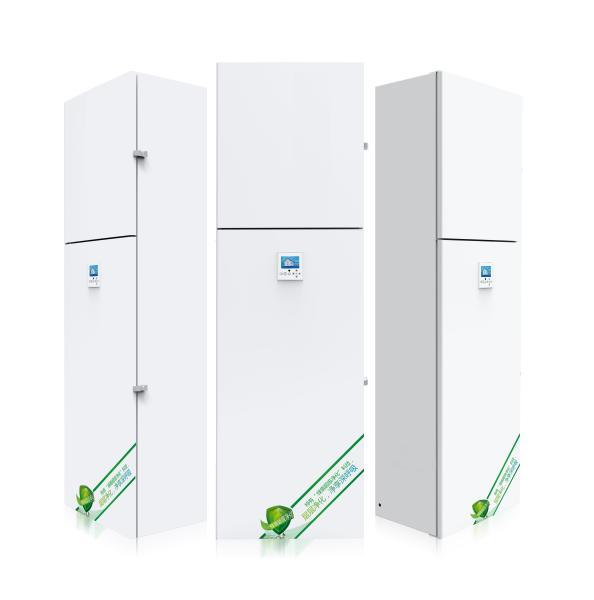

220W Cabinet fresh air ventilation system prevention of coronavirus
PM2.5 purification energy saving
► SPECIFICATION
| NAME | Cabinet fresh air ventilation |
| FRESH AIR VOLUME | 800m3/h |
| PURIFYING RATE | PM2.5-99.9% |
| POWER | 220V/50HZ |
| MAX. POWER | 220 W |
| WEIGHT | 115Kg |
| APPLICABLE AREA | 200-280 m2 |
| AIR SUPPLY MODE | Top air supply |
► CHARACTERISTIC
★ Super purification
Using electrostatic purification technology, the electrostatic dust
collector generates 10000 volts high voltage, which makes the dust
in the air carry electric charge. The air passing through the
electrostatic dust collector is absorbed by the positive and
negative plates. Through the 10000 volt negative voltage, the
bacterial cell tissue is destroyed and the bacteria are completely
killed. The purification efficiency of PM2.5 is as high as 99.9%
★ High efficiency and energy saving
The brushless DC motor can save more than 40% energy than AC motor,
the fresh air and exhaust air share the same fan, only 0.5 kwh
power is needed for 24-hour operation
★ Automatic ventilation
When the indoor air concentration is lower than the set value, the
control system will start the automatic ventilation mode. When the
temperature difference between indoor and outdoor is lower than the
set value, the system will automatically open the bypass valve
mode.
★ Wireless monitoring
Transfer the operation status to the mobile phone through Wifi
directly, so that the operation of the system can be mastered
anytime and anywhere.
★ Remote operation
Master the actual operation of the system through Wifi, but also
through the mobile phone to achieve remote operation.
★ Intelligent mute
The unique structure design of the fresh air fan, adopts the DC
brushless motor, design the large diameter wind wheel specially, the low speed, the machine does not produce any noise during
operation.
★ Convenient maintenance
The fan runs at low speed and has low failure rate. Ceiling and
wall mounted fresh air ventilaiton are both have one fan and two
wind wheels, which is 50% less than other brand products.
★ Low carbon environmental protection
The electrostatic dust box can be repeatedly cleaned (the design
service life of the dust box is 10 years), the primary efficiency
and high efficiency filters can be replaced with little money, the
surrounding aluminum frame can be reused, saving money and
environmental protection.
► SIZE
► ADVANTAGE
★ PM2.5 removal effect diagram
solubility
minute 10 20 30 40 50 60 minute 10 20 30 40 50 60
When the machine is started for 1 hour, PM2.5 decreases by about 25
ug / m3, which is the high quality air standard, formaldehyde drops to
about 0.3 mg / m3
★ Efficient filtration
Primary filter
Large filtration area and large dust capacity
The spreading area of primary filter is about 3 m3,It can filter large particles,
block mosquitoes, hair, etc.
Characteristic:
The primary filter is made of fiber cotton,It has the
characteristics of large filtering area, large dust capacity, low
wind speed and low resistance. The service life of the follow-up
filter screen depends on this layer.
Medium efficiency filter
More than 97% of PM2.5 was filtered at one time
High efficiency filter
H13 medical grade filter screen, single filtration 99.95% PM2.5
Characteristic:
PTFE composite filter element is adopted,compared with the
traditional glass fiber, PTFE filter paper will not emit chemical
gas
The spreading area of primary filter is about 30 m3,depending on the service environment, it is generally replaced
within 1-2 years.
Protect the health of you and your family
Eliminating visible and invisible air pollution
Pet hair Urban waste Pollen PM2.5 Second hand Viral Formaldehyde
gas smoke bacteria
Special fan
Big wind wheel Low speed Low noise Long service life
► Fresh air and exhaust air use one brushless DC motor
► The wind wheel and impeller is designed, moulded and processed by
our company.
We can control the quality effectively.
► Wind wheel is 2.5 times larger than other brands.
► It has the characteristics of high efficiency, low noise, large
air volume and stable operation.
special volute big air volume DC brushless special volute
wind wheel motor
