Heat recovery ventilator 65-75% heat exchange rate energy saving
► TECHNICAL PARAMETER
| TECHNICAL PARAMETER |
| MODEL NO.: | CSD250-H |
| FRESH AIR VOLUME | 250 CMH / 147 CFM |
| FRESH AIR RESIDUAL PRESSURE | 80 Pa |
| EXHAUST AIR VOLUME | 200 CMH / 118 CFM |
| EXHAUST AIR RESIDUAL PRESSUR | 60 Pa |
| NOISE | 28 dB |
| PURIFICATION RATE | PM2.5-99.9% |
| EXCHANGE RATE | ≧65-75% |
| VOLTAGE | AC 220V-240V |
| RATED POWER | 100W |
| APPLICABLE AREA | 80-120 M2 |
| AIR SUPPLY MODE | TOP AIR SUPPLY, DUCT INSTALLATION |
| WEIGHT | 36 KGS |
| SIZE | 784*785*228 MM |
► CHARACTERISTIC
1. Replacement of indoor air to maintain indoor constant oxygen,
continuous discharge of indoor dirty gas to ensure indoor air
health and achieve the building's respiratory function;
2. The fresh air section of the whole machine is equipped with G4
primary filter + high-efficiency filter+UV lamp+high voltage
electrostatic filter. The return air section is equipped with
high-efficiency HEPA filter, which can be filtered more than 99.9%
PM2.5 particles in the air; ;
3. Simple operation, LCD controller;
4. Energy-saving and comfortable; recover more than 71% of the
energy in exhaust air, reduce the temperature difference between
indoor and outdoor gas, achieve the purpose of comfort and
energy-saving;
5. Designed with bottom open door, make maintenance of filter
screen and heat exchange core easier.
► STRUCTURE
► DETAIL DISPLAY
Touch color display
TFT real color screen, more refreshing color, sensitive touch,
simple operation
Stable and durable ceiling hook
Made of high quality stainless steel, not easy to rust, durable
Easy to replace consumables
Unscrewing the stud manually can replace the consumables, which is
convenient and quick
Special fan
Big wind wheel Low speed Low noise Long service life
► Fresh air and exhaust air use one brushless DC motor
► The wind wheel and impeller is designed, moulded and processed by
our company.
We can control the quality effectively.
► Wind wheel is 2.5 times larger than other brands.
► It has the characteristics of high efficiency, low noise, large
air volume and stable operation.

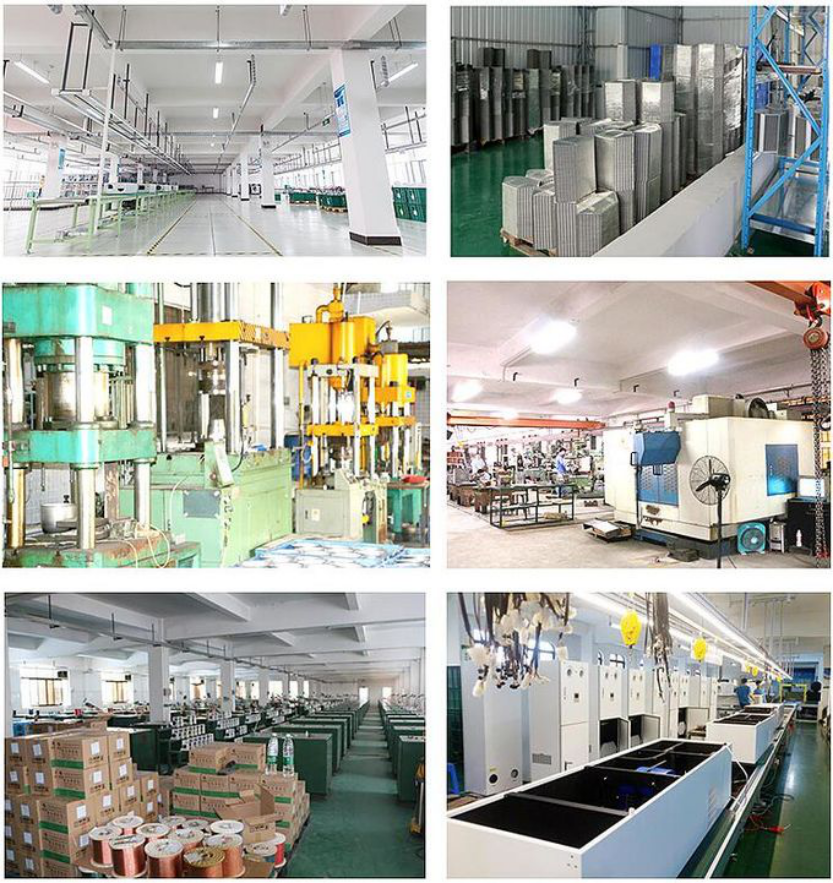

► OUR FACTORY
► OUR SERVICES
Our staffs of sales and technical support is available to help you
in selecting the right protection for your application as well as
to provide you with samples of our products for evaluation. At CS,
we are committed to providing the highest level of customer
service, competitive pricing, speedy delivery and a comprehensive,
cutting-edge product offering. Our ultimate goal is your
satisfaction.
